Carrier And Shuttle Car ASRS
Shelf Height Can Reach 30 Meters Or Higher
Multi Deep Pallet ASRS are fully automated pallet storage solutions for warehouses with low ceilings, fewer unique products and high throughput requirements, these shuttle based ASRS system range from:
Carrier And Shuttle Car Shuttle rack System
Four Way Shuttle System
S/R M + Shuttle System
Radio Shuttle System-- Semi Automated Solution
HUAYIDE's Mother & Baby Shuttle ASRS consists of high-density pallet racking, mother shuttle (satellite) powered by bus bar, baby (child) shuttle board on mother shuttle, pallet elevator, buffer conveyors etc.
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Solution Introduction
—
| Type | Non layer transfer type | Layer transfer type |
| Mother Shuttle Model | HDSZS | HDSZM |
| Mother Shuttle Power Supply Mode | Bus bar | battery | Bus bar | battery |
| Max Load Capacity (kg) | 1500 | 1500 | 1500 | 1500 |
| Applicable Pallet Size (pallet length mm) | 1100×1300 | 1100×1300 | 1100×1300 | 1100×1300 |
Speed | Mother Shuttle empty load | 2.5 | 1.5 | 2.5 | 1.5 |
| Mother Shuttle fully load | 2.0 | 1.0 | 2.0 | 1.0 |
| Satellite empty load | 1.0 | 0.9 | 1.0 | 0.9 |
| Satellite fully load | 0.6 | 0.5 | 0.6 | 0.5 |
| Motor power | Mother Shuttle drive motor | 2.2 (AC380V) | 1.5 (DC48V) | 2.2 (AC380V) | 1.5 (DC48V) |
| Mother Shuttle chain motor | 0.4 (AC380V) | 0.4 (DC48V) | 0.4 (AC380V) | 0.4 (DC48V) |
| Satellite drive motor | 0.4 | 0.4 | 0.4 | 0.4 |
| Satellite lifting motor | 0.37 | 0.37 | 0.37 | 0.37 |
| Mother Shuttle battery | Battery capacity Ah | | 80 | | 80 |
| Continuous working hours on a single charge | | 8 | | 8 |
| Charging time h | | 8 | | 8 |
| Child Shuttle battery | Battery capacity Ah | Super capacitor | 50Ah (DC24V) | Super capacitor | 50Ah (DC24V) |
| Carrier & shuttle charging mode | On-line | On-line | On-line | On-line |
| Control mode | Manual, Automatic, On-line |
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
CASE

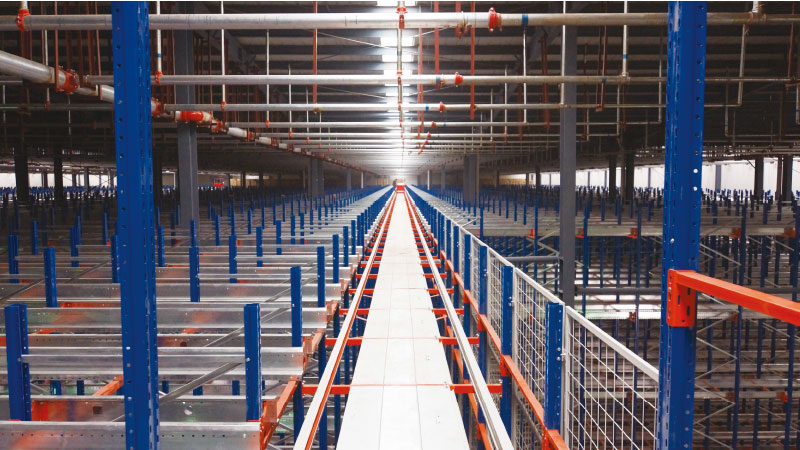

China Resources Double Crane
——
Solution Introduction
—
| China Resources Double Crane |
| Shelf height 12.5 meters｜five layers storage |
| total 25,190 pallet location｜10 sets of carrier & shuttle system |
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
CASE

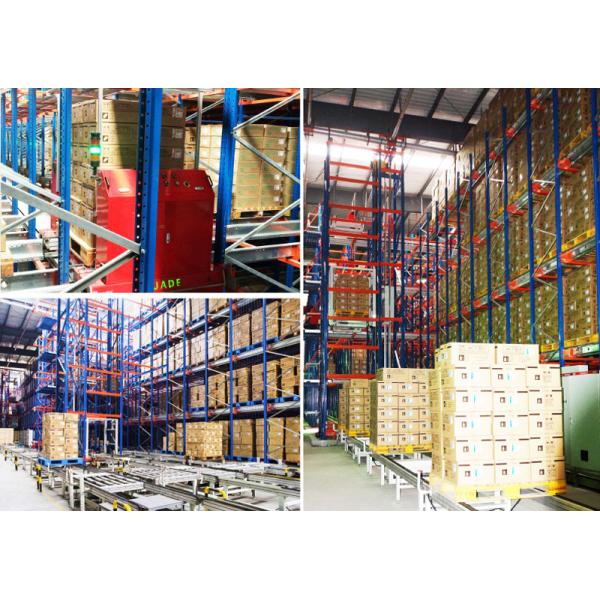

Jiangsu Hengshun Vinegar-Industry
——
Solution Introduction
—
| Project: Jiangsu Hengshun Vinegar-Industry |
| Height: 22m 10659个 Number of goods: 9600 Operating time: August 2020 |
| Main equipment: 2 sets of mother & baby shuttle, 1 set of conveying system, 1 set of rack system, and 1 set of WMS/WCS/RFS software system. |
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Stacker Crane AS/RS
——
The stacker operates in the horizontal and vertical directions during the warehouse racking by racking and stacker equipement. According to the instructions of the computer, the goods carried by the pallets are stored in the designated goods by the motor-driven fork. Or remove the goods from the designated pallet location.
■ Product Advantages
Customized according to project production, light, heavy, single and double deep; complete categories
Representative manufacturer of domestic European structural design, stable performance of stacker, ensuring long-term reliable operation
Deepen understanding of customer business needs, focusing on optimization design
■ Characteristics
Shelf height can reach 40 meters or higher, reducing land occupation area
Automatic unmanned operation, reducing labor costs
Seamless data integration with ERP system and real-time intelligent production scheduling
Eliminate the chaos in the warehouse and reduce the difficulty of management
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
