One Bar Of Guardrails
——
FS-2021A
Flexible · Plastic · anti-collision
HC-1 One Bar Guardrails
——
Application

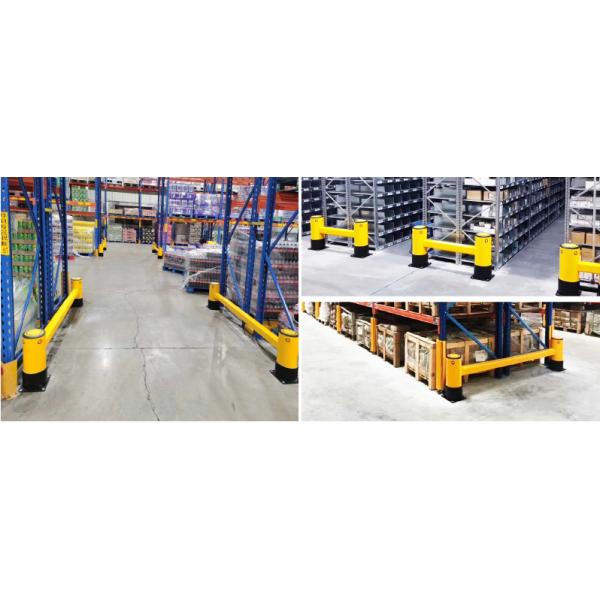

It is suitable for use in areas such as pedestrian-vehicle separation passages, to limit vehicle routes, and to protect the safety of personnel and assets.

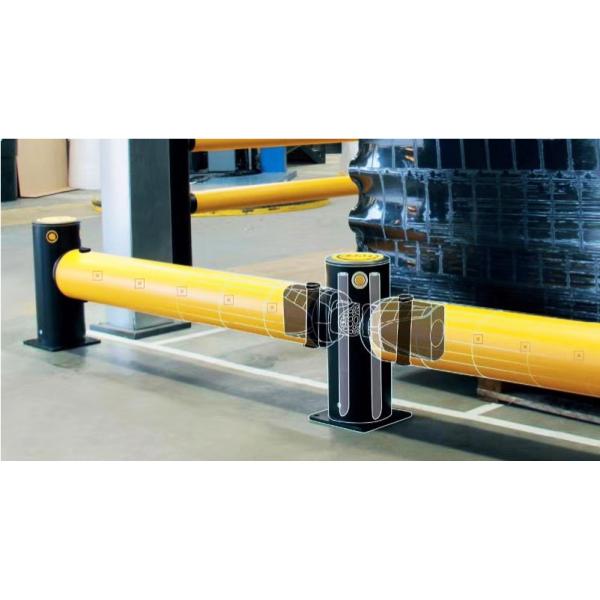

Tube: Exclusively designed by imported macromolecular materials, strong weather resistance, durable, original color, ISO4892-3 approved, strong chemical resistance, no erosion, low level of chemical activity.
Base:Assembled by sorts of materials, including metal and rubber, visible metallic parts are spray painted in black; neutral salt-fog test 500 hours, do not rust
Ground Connector:Fixed by inverted cone chemical anchor bolt, with dacromet, withstand 1000 hours exposure to neutral salt spray with no rust; fastened by SS304 cap nut.

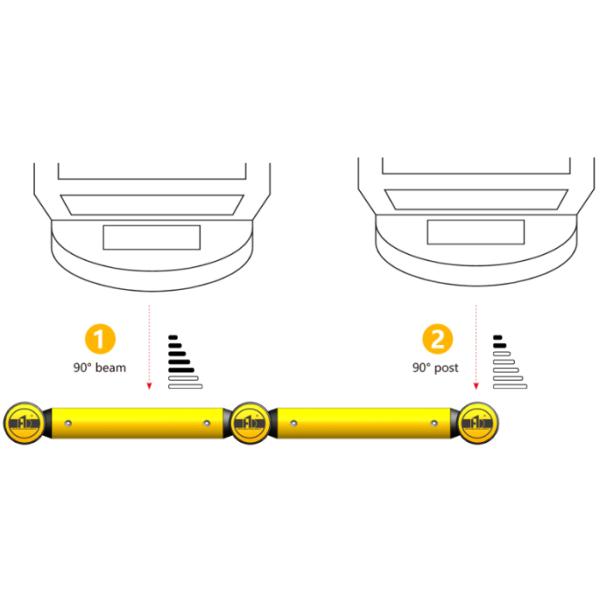

| | Absorbable Impact Energy |

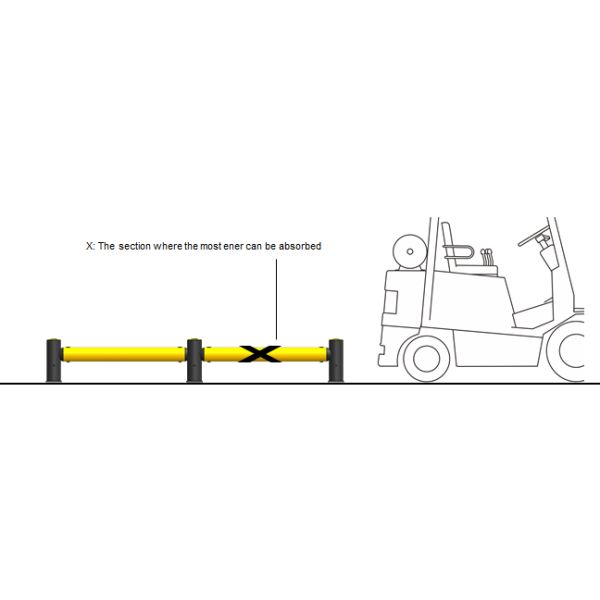

| 1 | 5.0 Tons Vehicles, 5.0 km/h Speed, The forklift and the safety barriers are 90°, the impact of the forklift's tail is on the middle of the 1.8m safety barrier beam. |
| 2 | 5.0 Tons Vehicles, 2.75 km/h Speed, The forklift and the safety barriers are 90°, the impact of the forklift's tail is on the center of the post. |
Rack Protector · Warehouse Storage Rack · Made In China
MC-1 One Bar Guardrails
——
Application
Designed for segregated areas between pedestrian and vehicles, restricting routes of vehicles, to ensure the security of people and assets
Tube: Exclusively designed by imported macromolecular materials, strong weather resistance, durable, original color, ISO4892-3 approved, strong chemical resistance, no erosion, low level of chemical activity.
Base: Assembled by sorts of materials, including metal and rubber, visible metallic parts are spray painted in black; neutral salt-fog test 500 hours, do not rust.
Ground Connector: Fixed by inverted cone chemical anchor bolt, with dacromet, withstand 1000 hours exposure to neutral salt spray with no rust; fastened by SS304 cap nut.
| | Absorbable Impact Energy |
| 1 | 3.0 Tons Vehicles , 6.0 km/h Speed, The forklift and the safety barriers are 90°, the impact of the forklift's tail is on the middle of the 1.6m safety barrier beam |
| 2 | 3.0 Tons Vehicles,3.5 km/h Speed, The forklift and the safety barriers are 90°, the impact of the forklift's tail is on the center of the post. |
Rack Protector · Warehouse Storage Rack · Made In China
Rack Protector · Warehouse Storage Rack · Made In China
Rack Protector · Warehouse Storage Rack · Made In China
Rack Protector · Warehouse Storage Rack · Made In China
Safety Barrier · Warehouse Storage Rack · Made In China
Rack Protector · Warehouse Storage Rack · Made In China
